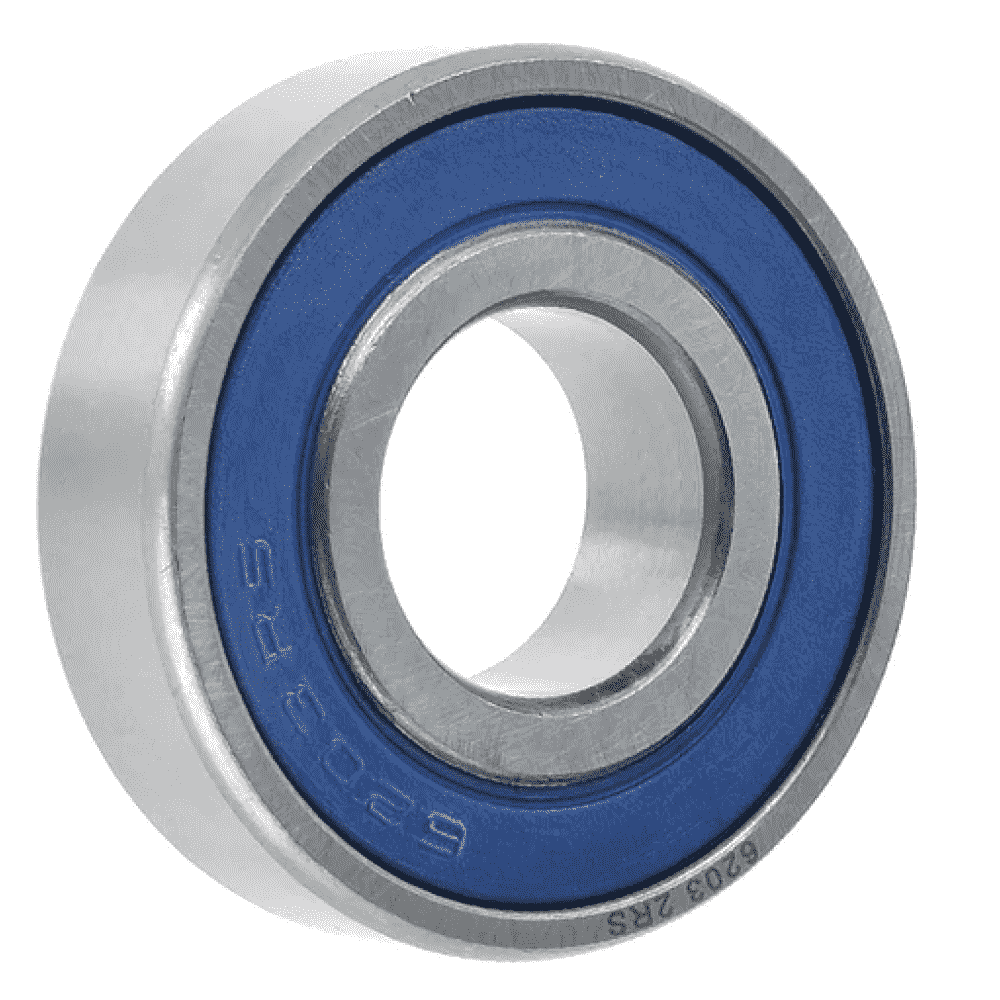

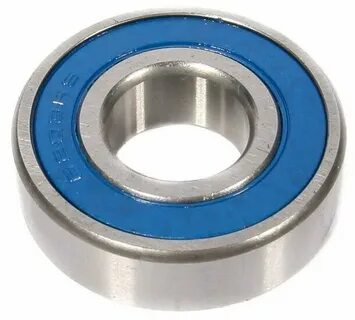

17x40x12 6203.RS Wheel Hub Bearing

1. The steel balls slide smoothly and can withstand higher loads and speeds.

2. The noise generated during operation is low

3. Because of the sealing ring, it can effectively prevent dust, moisture and other impurities from entering the bearing, extending the service life


Contact Now E-Mail Telephone WhatsApp
Product Details

17x40x12 6203.RS Wheel Hub Bearing is a precision radial ball bearing both sides rubber sealed high quality and is pre-lubricated with grease,  can keep the lubricant in and contaminants, dirt and debris out.



Product Description

OE No.

6203.RS

Reference NO.:

6203RSR    6203NSL

6203D        6203DU

Material

Rubber,Steel

Greased / Lubricated

Yes

Bore (Inner) Diameter

17 mm

Outer Diameter

40 mm

Width (Thickness)

12 mm

Weight

0.063 KGS

Max Operating Temperature

120° C

Min Operating Temperature

-40° C

Type Of Bearing

Ball Bearing

Maximum Operating RPM

20000 RPM (oil), 12000 RPM (grease)


6203RS

Detailed Informations

  • Single-row bearing for supporting radial loads

  • Chrome steel for durability and resistance to deformity under heavy loads

  • Rubber seals on both sides of the bearing to keep lubricant in and contaminants out

  • Lubricated at manufacturer for no additional lubrication required

  • RPM limit of 12,000 with grease lubrication



6203.RS bearings are widely used in various mechanical equipment, including but not limited to:

  1. Papermaking machinery: used in paper machine transmission system, paper reel and other parts.

  2. Deceleration device: such as transmission equipment such as reducer and transmission.

  3. Railway vehicles: support and transmission of axles, wheels and other parts.

  4. Rolling mill: support and transmission of gearbox seat, roll neck and other parts.

  5. Crusher, vibrating screen, printing machinery, woodworking machinery and other industrial equipment.

  6. All kinds of industrial reducers: such as reducers in wind power, mining, metallurgy and other fields.
