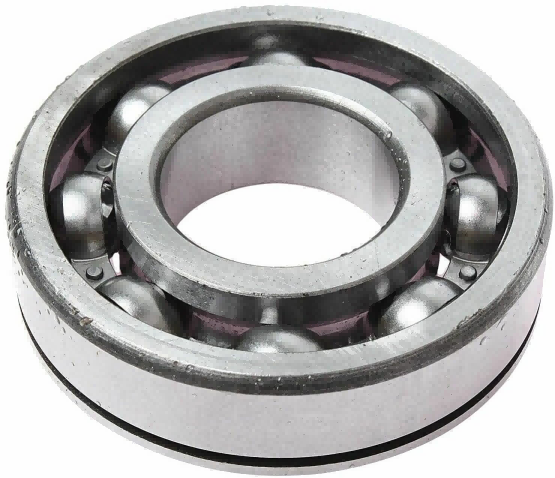

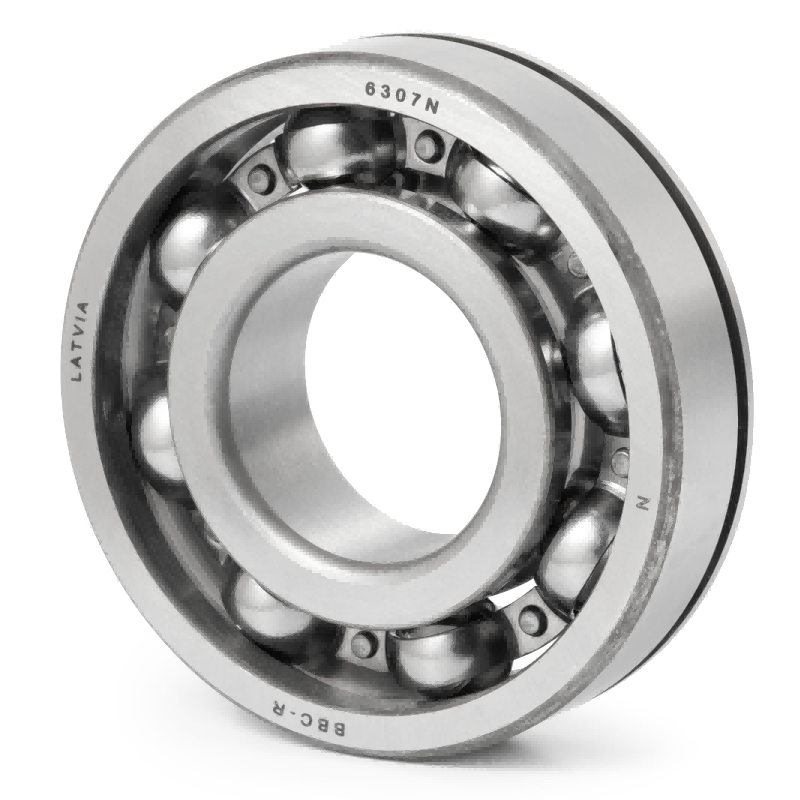

6307N Deep Groove Ball Bearing

1. High speed and low friction

It has high limiting speed and small friction coefficient, which makes it keep low heat generation and wear under high speed operation.

2. High load carrying capacity

It can not only withstand radial loads, but also a certain amount of axial loads after increasing the radial clearance, and even pure axial loads in some cases.


Contact Now E-Mail Telephone WhatsApp
Product Details


6307N Deep Groove Ball Bearing, also known as Single Row Radial Ball Bearing, is a widely used rolling bearing. Simple structure, high speed, low frictional resistance, and the ability to withstand radial loads or combined radial and axial loads are the main features of Deep Groove Ball Bearing.

6307N

Product Description

OE No.

6307N

Size

35x80x21mm

Weight

0.44 KGS

Cage Type

Steel

Seals or Shields

Open Type

Clearance

Standard

Dynamic Load Rating(KN)

35.1

Static Load Rating(KN)

19

Fatigue Load Rating(KN)

0.815

Warranty

12 Months

6307N

In addition to the automotive field, deep groove ball bearings can also be used in what areas?

  1. General machinery and equipment:

    Used in various general machinery and equipment, such as fans, pumps, compressors, textile machinery, etc.

  2. Precision instruments:

    Due to its high precision and low friction characteristics, deep groove ball bearings are also often used in precision instruments, such as measuring equipment, experimental instruments and so on.

  3. Household appliances:

    Such as washing machines, air conditioners and other equipment, the motor part of the deep groove ball bearings are also often used to support and stabilize the rotating shaft.

  4. Agricultural machinery:

    Used in the transmission system and power system of agricultural machinery, such as harvesters, tractors and other equipment.

  5. Construction machinery:

    Such as cranes, excavators and other equipment in the operation process need to withstand large loads and vibration, deep groove ball bearing application helps to improve the stability and reliability of these equipment.
