Linear Rails and Bearings Kit CNC Rails Linear

  1. Easy to Install

    The linear rail set requires careful installation that, however, is easy. After three steps, it is ready for running for a long time.

  2. Durable and Precise

    The blocks are designed with precise bearings inside that allow the blocks to slide freely and fast on the rail.

Contact Now E-Mail Telephone WhatsApp
Product Details

Linear Rails and Bearings Kit CNC Rails Linear Rail Set for Automated Machines and Equipment. Unlike typical bearings that enable circular motion, linear bearings, also known as linear slides, promote movement in a straight line and consist of a movable part and a guide rail. Linear motion is generally accomplished with the use of ball or roller bearings loaded onto a track that supports a surface, which can be moved back and forth, such as a table.

Linear Rails


Specifications:

Condition: Brand New

Bearing Blocks: 4 Pieces, SBR16UU

Rail Shafts: SBR16, 39.4"/1000 mm

Gross Weight: 13.2 lbs (6 kg)

Package Dimensions: 40.2"x3.5"x3.1" (102x9x8 cm)


Rails Linear


Linear Bearing Slide Rail Kit

The linear motion products are widely used for automatic mechanical facilities in need of accuracy. Our rail shafts are made of good-quality steel and aluminum alloy. They are the perfect combination of main axles and aluminum supports, which stabilize the original rails. The bearing blocks move smoothly while being used.

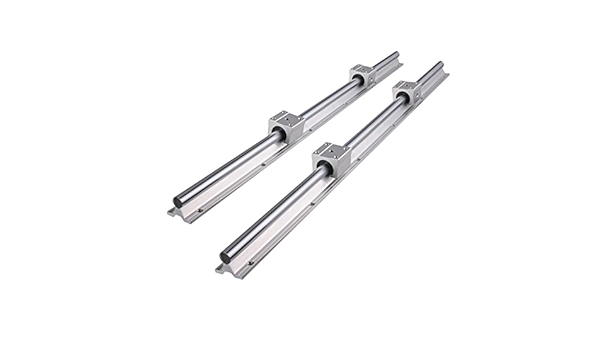

SBR16 Linear Rail Kits

The linear guide and bearings kit contains 2 pieces of 39.4"/1000 mm long SBR16 rail shafts and 4 SBR16UU blocks.

High-Quality Material

The CNC rail kit is made of rigid steel and aluminum alloy. They are resistant to corrosion and wear, suitable for strict working conditions.

Sturdy & Smooth Surface

The linear bearing slide rails feature a polished smooth finish that reduces friction when blocks move on them and works efficiently.
