Front Axle Left Shock Absober 53212-2905006-01

1. With a compact and symmetrical structure, the installation space is relatively small, the force is more reasonable, and it is convenient to install and arrange on a variety of equipment.

2. The interior of the shock absorber is filled with liquid, when impacted, the liquid can absorb a large amount of energy in the compression process, thus generating a larger damping force and effectively reducing vibration.


Contact Now E-Mail Telephone WhatsApp
Product Details

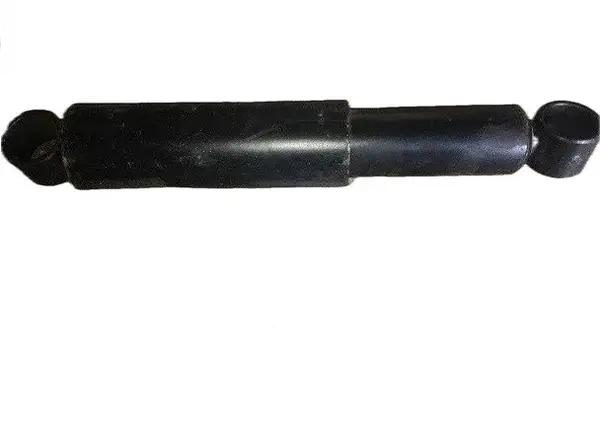

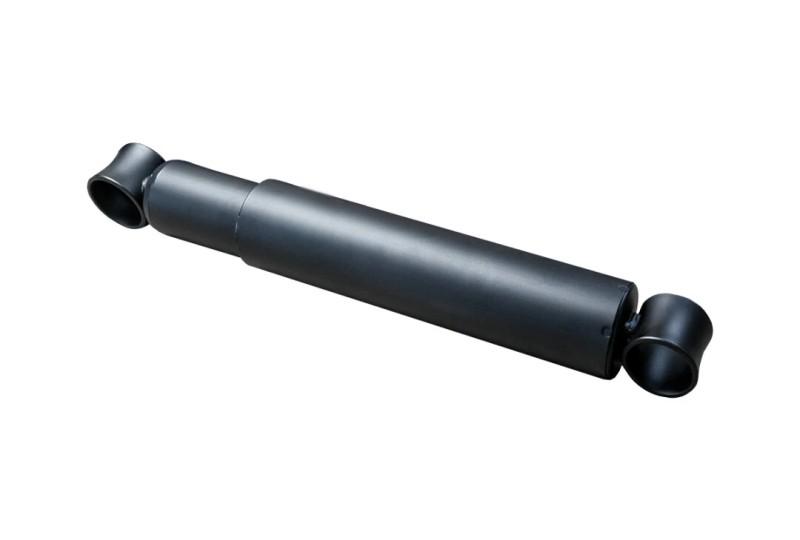

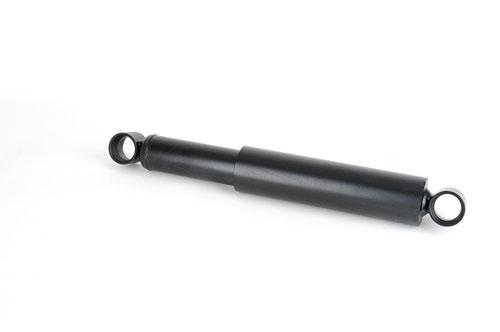

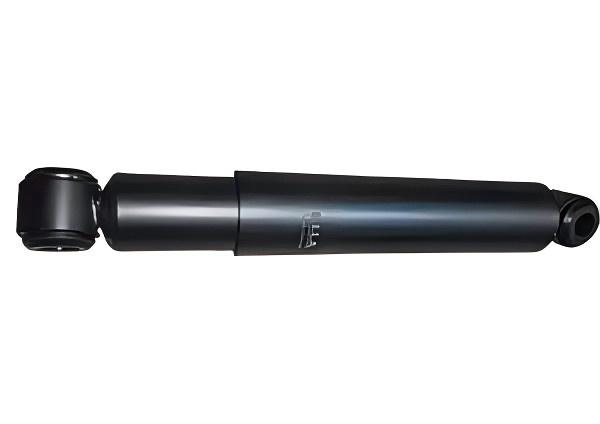

The Front Axle Left Shock Absober 53212-2905006-01 is a double barrel shock absorber with an inner and outer barrel, with the piston moving in the inner barrel.

As the piston rod moves in and out, the volume of oil in the inner barrel increases or decreases accordingly, thus requiring an oil exchange with the outer barrel to maintain balance.

53212-2905006-01

Product Description

OE No.

53212-2905006-01

Reference No.

5320-2905006
P53212290500601
53212-2905006-02

Length1

459mm

Length 2

736mm

Diameter

60mm

Piston rod diameter

20mm

Weight

5.2kg

Car makes

KAMAZ
5320,53212,
53215,5410

Mounting position

Front Axle Left

Type

Oil Pressure

Construction

Telescopic Shock Absorber

System

Twin-Tube

53212-2905006-01

This shock absorber is equipped with four valves: in addition to the two throttling valves on the piston, there are flow and compensation valves located between the inner and outer barrels, which are used to realize the oil exchange.

53212-2905006-01,damper

Car Make Details

KAMAZ

Model

KAMAZ  53215 53215

KAMAZ  53228 53228

KAMAZ  53229 53229

KAMAZ  54115 54115

KAMAZ  55111 55111

Year

2004-

1999-

1999-

1984-

1995-

Engine

740.11,740.31

740.51

740.51

740.11,740.31

740.51

Emissions

10850

11760

11760

10850

11760

Power

176

235

235

176

235

Type






53212-2905006-01,damper

FAQs

1. what kind of shock absorber is this?

This is a double barrel shock absorber.

2. how does this shock absorber work?

Based on the flow of oil inside the shock absorber and the throttling action of the valves.
