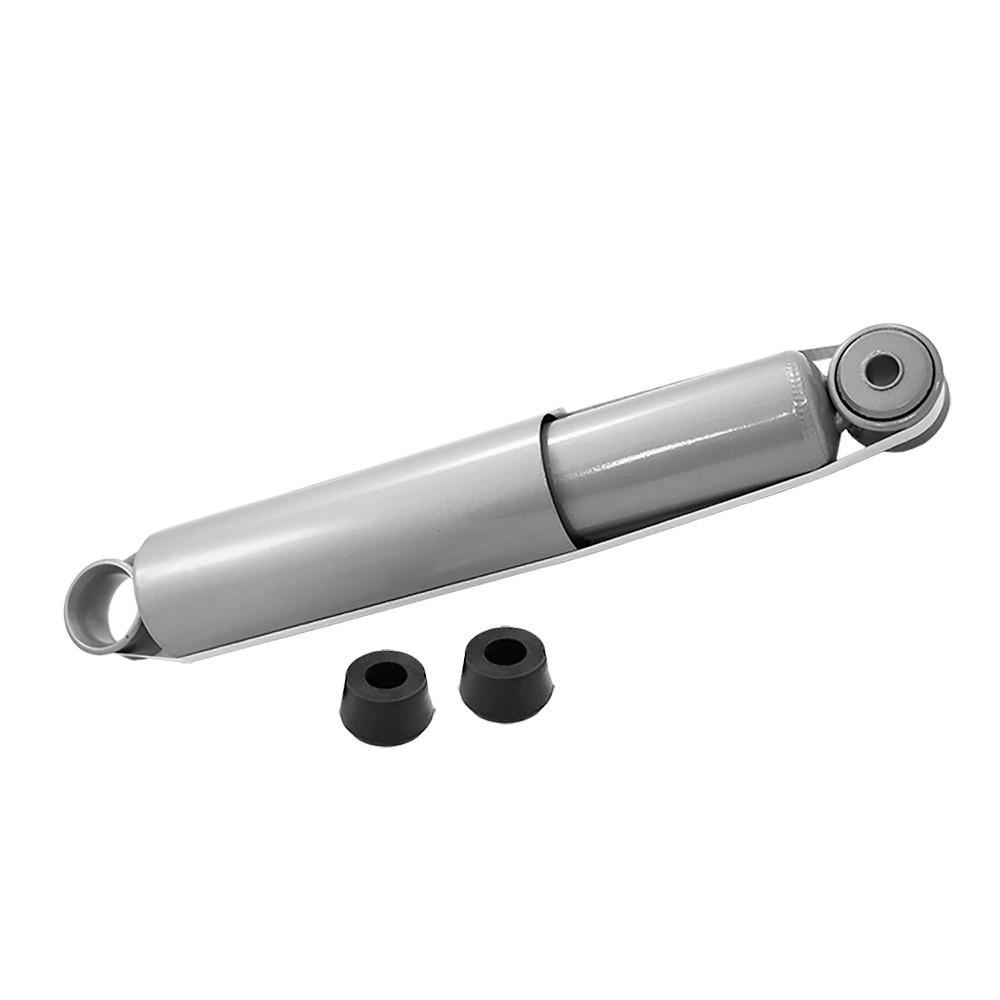

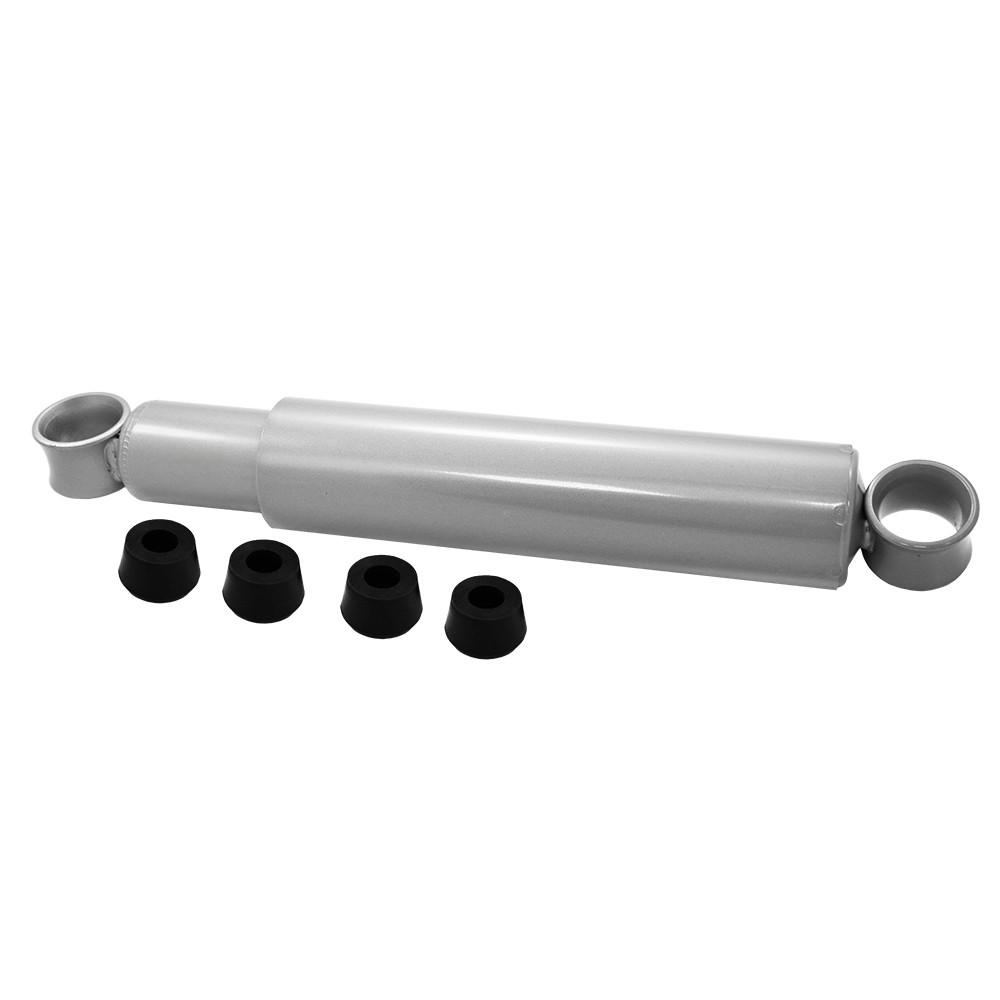

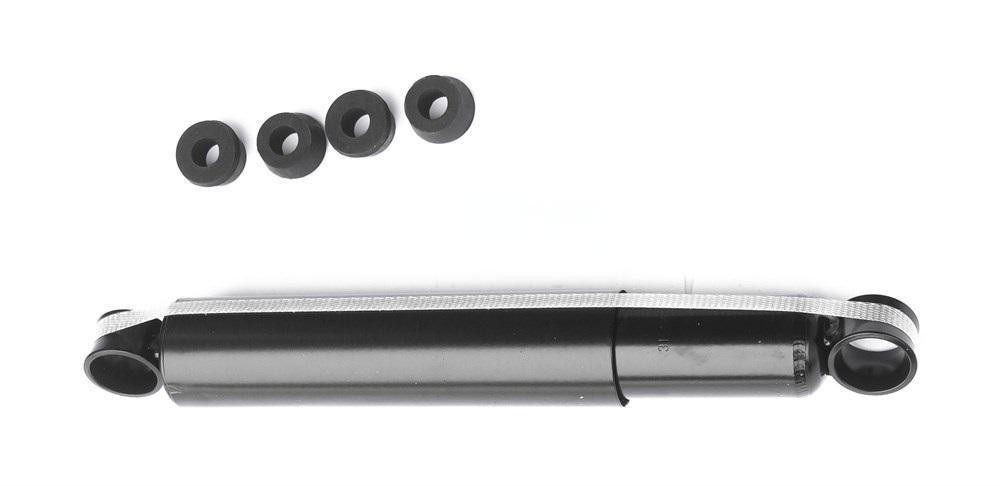

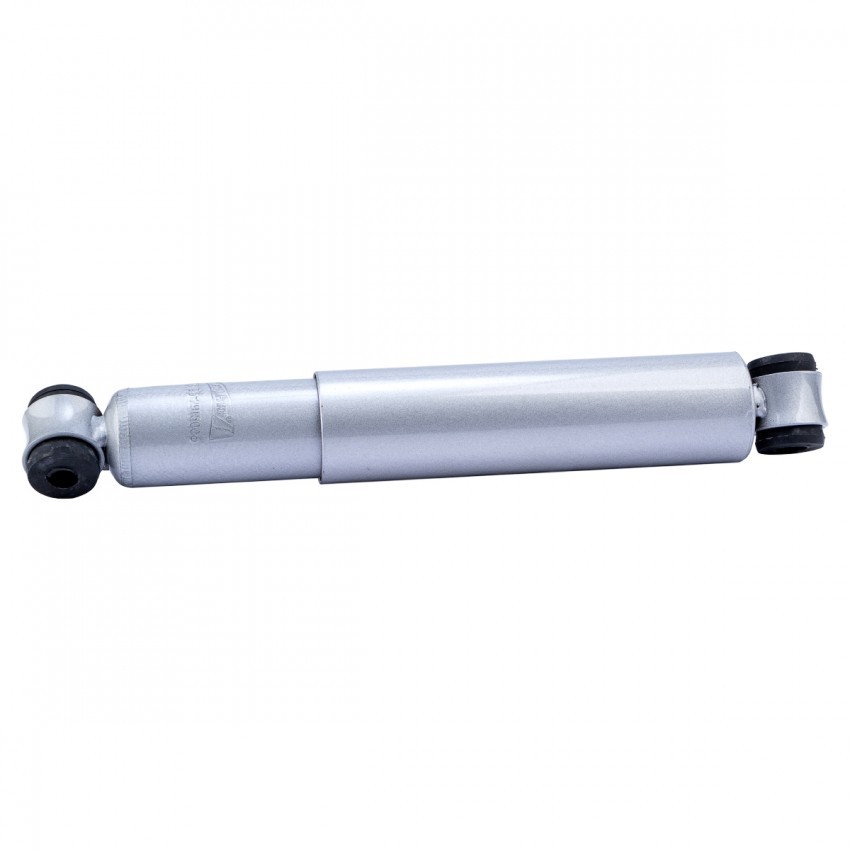

Rear Axle Damper 381.291501

1. The asymmetry rate of the tension and compression force of the hydraulic shock absorber is less than 10%, which ensures the stability of its dynamic performance.

2. A non-metallic wear-resistant ring is installed between the oil cylinder and the piston to reduce the friction generated by the movement between metals and increase the service life.

3. The liquid single-circle high-pressure jet damping structure is adopted, so that the noise generated by the shock absorber during operation is extremely low.

Contact Now E-Mail Telephone WhatsApp

Product Details

Rear Axle Damper 381.291501 is a hydraulic shock absorber that achieves the purpose of vibration reduction by stretching and compressing the piston rod to form a hydraulic damping force.

This 381.291501 hydraulic shock absorber plays an important role in UAZ vehicles, improving the vehicle's operating stability and safety, extending its service life, and improving the comfort of riding or operation.

381.291501

Product Description

OE No.	381.291501	Reference No.	315195-2915006 3159-2915006 3151-2915006-11
Length 1	348mm	Length 2	560mm
Weight	2.16kg	Car Makes	UAZ 31529531514, 3153, 3159,3160
Diameter	45mm	Piston rod diameter	15mm
Location	Rear Axle	Shock absorber type	Oil Pressure
Shock absorber structure	Telescopic Shock Absorber	Shock absorber system	Twin-Tube

381.291501

Car Makes Details

Model	UAZ 3151 (3151_) 2.4	UAZ 3151 (3151_) 2.4	UAZ 3160 Closed Off-Road Vehicle 2.4	UAZ HUNTER (31519_) 2.2 D	UAZ SIMBIR (3162) Closed Off-Road Vehicle 2.9 i
Year	1992-2003	1992-2003	2000-2007	2007-2013	1997-
Engine	UMZ-4178.10	UMZ-4178.10	4CT90	YA3151	UMZ-4213.10
Emissions	2446	2446	2417	2235	2890
Power	68	68	75	68	88
Type	Closed Off-Road Vehicle	Closed Off-Road Vehicle	Closed Off-Road Vehicle	Closed Off-Road Vehicle	Closed Off-Road Vehicle

315195-2915006

As a manufacturer with over 10 years of experience in bearing production, KDKD has been the brand of choice for automotive manufacturers and parts distributors worldwide. Wheel bearings, hub units, tensioner pulleys, clutch assemblies, shock absorbers and other products meet the global demand for quality, durability and performance.
