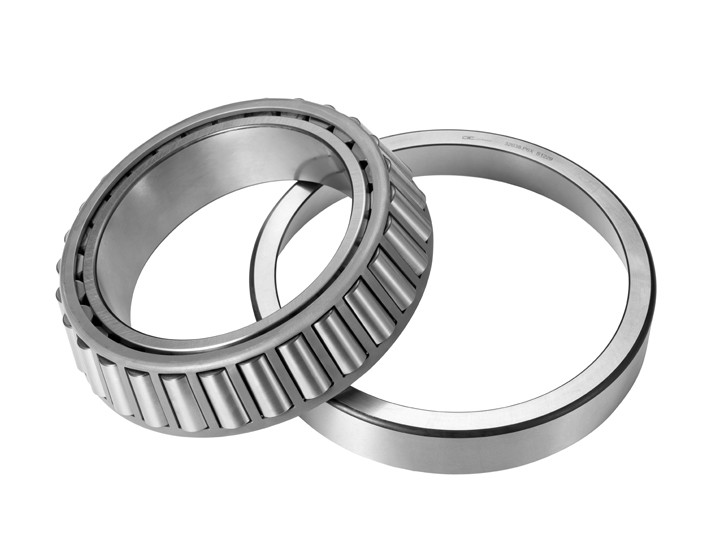

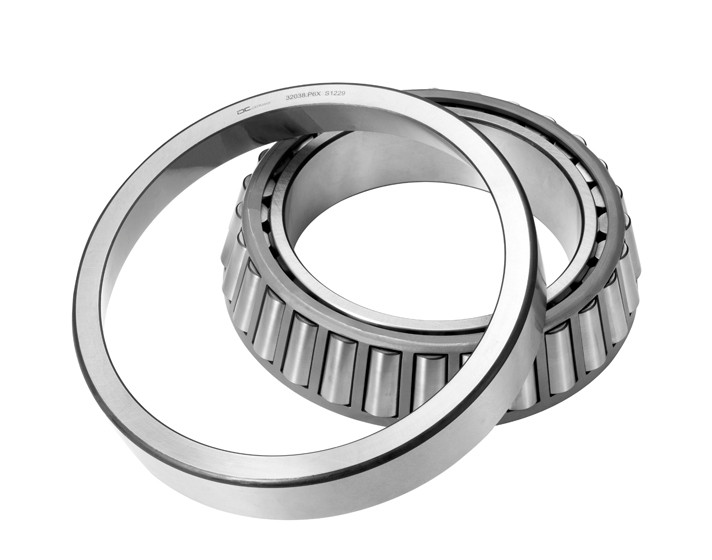

Taper Roller Bearing 639209 336501 for Fiat
The 639209 is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.
Taper Roller Bearing 639209 336501 for Fiat

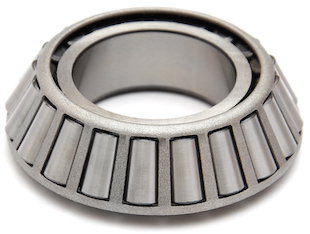

The 639209 is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring
with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of
the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing.
Paired bearing sets can also be applied in X, O, or tandem arrangements.
1. Item specifics:
Brand | KDKD or customize | Manufacture No. | TKD-001 |
Material | GCR15 chrome steel | Warranty | 1 year |
Delivery time | 25-30 DAYS | Packing | Customer's request |
Size | 15*35*11.19 | Weight | 0.07KG |
Port of shipment | Ningbo or Shanghai port,China | Car model | For FIAT |
2. OEM reference
Brand | Number |
CORAM | CR061 |
SKF | 639209 |
SKF | VKBA 928 |
BREDA LORETT | C101 |
3. Application
FIAT 126 (126_) 600 Hatchback 1972-1977
FIAT 500 (111_, 101_, 110_) 0.5 (110F) Saloon 1965-1975
FIAT 500 (111_, 101_, 110_) 0.5 (111A) Saloon 1957-1961
FIAT 500 (111_, 101_, 110_) 0.6 Saloon 1968-1976
