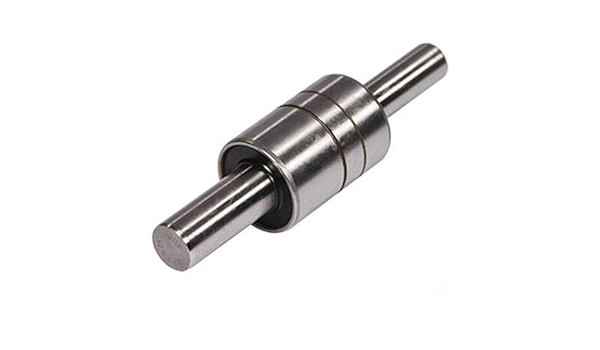

Customize Water Pump Bearing

Water pump bearings are used in the water pump that circulates cooling water for the

car's engine. KDKD's bearings provide a longer service life thanks to their higher sealing

performance and grease with excellent heat resistance and water resistance.

Water pump bearings are used in the car's water pump. A shaft appropriate to the inner

 ring is installed, and that shaft is longer than the width dimensions of the outer ring. To

the larger-diameter side of the shaft is attached the driving pulley, while the impeller is

attached to the small-diameter side.


Contact Now E-Mail Telephone WhatsApp
Product Details

Functions Required of Bearings and the Water Pump Structure

Customize Water Pump Bearing

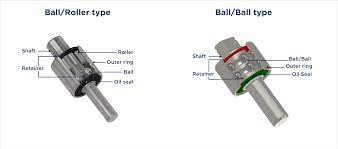

Structure

Water pump bearings are sealed double-row bearings with wide spacing between the two rows of rolling elements.
There is a ball-ball type consisting of only balls and a ball-roller type consisting of a ball and a roller.
Standard products have a keyway (groove) in the center of the outside surface of the outer ring for a wire (clip) to prevent the water pump bearing from coming off.

Customize Water Pump Bearing Customize Water Pump Bearing


Features

  1. The profile of stepped shafts does not damage the shaft even if a large amount of force is applied from the belt.

  2. A highly effective seal is used to prevent leakage of filled grease and prevent cooling water that leaks out from the mechanical seal from entering the bearing. Some use a highly-sealed triple-lip seal to further enhance the prevention of cooling water from entering.

  3. The grease used has excellent durability in high-speed rotation, high-temperature, and mixed-water conditions, and the sealing material used has excellent compatibility with cooling water.

Customize Water Pump Bearing Customize Water Pump Bearing
